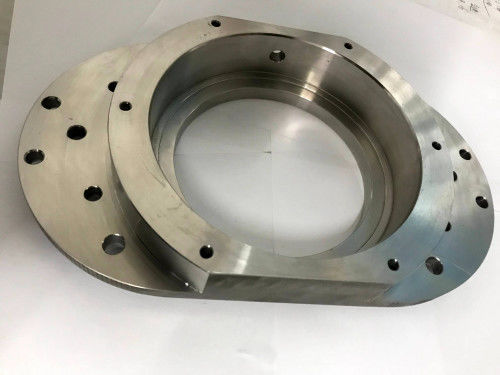

Custom Pipe Bearing Support Plate For Material Transmission Line Steel Strip Production Line

Custom Bearing Support Plate For Material Transmission Line Steel Strip Production Line

A bearing support plate, also known as a bearing pedestal or bearing mounting plate, is a flat or slightly curved component used to provide a stable and rigid support for a bearing. It is typically mounted on a structure or machine and serves as a foundation for the bearing assembly. Here are some key points about bearing support plates:

1. Support and Stability: The primary function of a bearing support plate is to provide a stable and rigid platform for the bearing. It ensures that the bearing is properly supported and aligned, allowing it to operate smoothly and efficiently.

2. Load Distribution: Bearing support plates help distribute the load from the bearing to the surrounding structure or machine. They are designed to handle the weight and forces exerted by the bearing under normal operating conditions, preventing localized stress concentrations and ensuring even load distribution.

3. Material and Construction: Bearing support plates are typically made from materials that offer strength, rigidity, and durability, such as steel, cast iron, or other suitable alloys. The material choice depends on factors such as the load capacity, operating conditions, and compatibility with the bearing assembly.

4. Mounting and Fastening: Bearing support plates are securely mounted and fastened to the structure or machine. They may have bolt holes or other provisions for attaching the plate to the mounting surface, ensuring a reliable and rigid connection.

5. Alignment: Proper alignment of the bearing is essential for its optimal performance and longevity. Bearing support plates provide a reference surface or mounting point that helps align the bearing with the rotating shaft or component it supports, ensuring smooth operation and minimizing wear.

6. Lubrication and Maintenance: Some bearing support plates may incorporate features such as lubrication passages or ports to facilitate the application of lubricants to the bearing. They may also have access points or openings that allow for maintenance, inspection, and potential bearing replacement.

7. Customization: Bearing support plates can be customized to accommodate different types and sizes of bearings, as well as specific application requirements. They can be designed to fit within the overall machine or equipment design and provide the necessary support for the bearing assembly.

8. Application Specifics: The design and construction of a bearing support plate depend on the specific application requirements, such as the type of bearing, load capacity, operating conditions, and the overall machine or equipment design. The plate must be engineered to meet the specific demands of the application for optimal performance and reliability.

In summary, a bearing support plate is a component that provides a stable and rigid foundation for a bearing. It supports the bearing, distributes the load, and ensures proper alignment. The design, material, and features of the support plate are tailored to the specific requirements of the bearing assembly and the application it is used in.
